90℃ High- Water Temperature Heat Pump - C1H (R134A+R32)

Two-stage compressor system.

• The C1H series heat pump utilizes a dual-refrigerant compressor system with R134A and R32. Through a two-stage heat exchange process, it can heat water up to 90 degrees Celsius, making it suitable for a wide range of industrial applications such as food processing, beverage production, industrial cleaning equipment, chemical and pharmaceutical processes, HVAC systems, laundry and fabric treatment, paper and textile industries, as well as sterilization and sanitation facilitie

Features of the C1H High-Temperature Heat Pump.

• High Water Temperature 90℃

  The advantage of the R134a system is its ability to produce high water temperatures (greater than 80℃ ), but the drawback is its unsuitability for use in low-temperature environments. When the ambient temperature drops below 0℃, the system's efficiency is significantly reduced. The R32 inverter system is suitable for low-temperature environments (below minus 20℃), but the maximum water output temperature of the R32 system is limited to 70℃. Therefore, combining the two systems by exchanging heat between the condensing side of the R32 system and the evaporating side of the R134A system through a heat exchanger can leverage the advantages of each system. This allows the heat pump to operate in low-temperature environments while also generating high water temperatures.




  The condenser of the R32 system functions as the evaporator for the R134a system, consistently providing a source temperature above 0°C. This ensures an efficient energy supply for the R134a compressor, enabling it to produce high water temperatures.

• High Efficiency

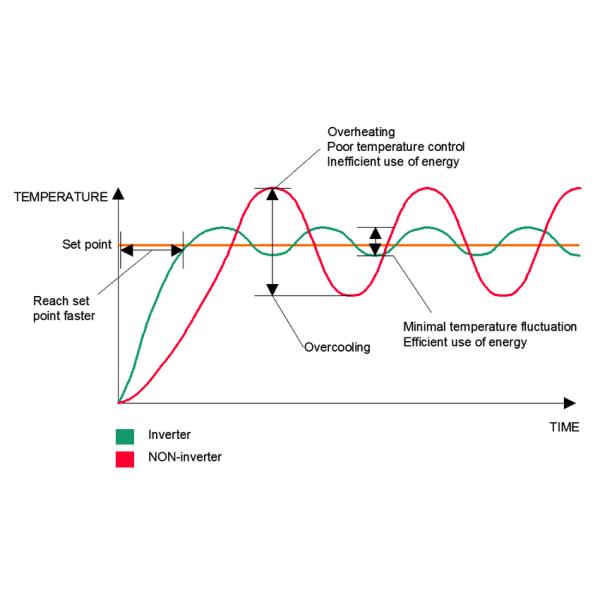

  The C1H high-temperature heat pump utilizes an inverter compressor system, offering high energy efficiency. This advanced system allows for precise control of the compressor speed, optimizing energy consumption by adjusting output according to the actual heating demand. As a result, it minimizes energy waste, reduces operational costs, and enhances overall system performance. The inverter technology ensures consistent and efficient heating, even under varying load conditions, contributing to long-term energy savings and sustainability.
•
• Photovoltaic Integration

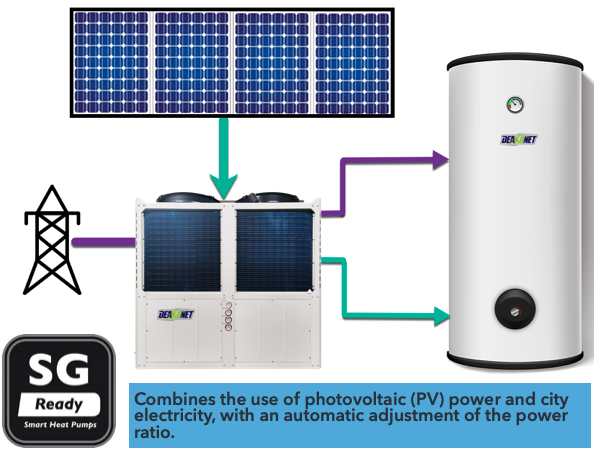

  The C1H high-temperature heat pump is optional to add a built-in smart grid module that enables seamless connection to PVT panels. This allows for the combined use of photovoltaic (PV) power and city electricity without the need for additional inverters or batteries. The system prioritizes the use of PV power, and when the PV supply is insufficient, it automatically supplements with city electricity. The balance between PV and city power is automatically adjusted from 0-100% based on the number of PVT panels installed, solar intensity, and time of day. This feature ensures optimal energy use, enhancing efficiency and sustainability while reducing reliance on grid powe

• Stable Performance in Low Temperatures: The C1H features an added solar panel heat exchanger with control valves, enabling the system to operate in environments with temperatures as low as -35°C.

• Environmentally Friendly: By integrating renewable energy sources like solar energy and utilizing Eco- friendly refrigerant , the heat pump reduces carbon emissions.

• Flexible: The C1H series heat pump is capable of producing high-temperature hot water up to 90°C, making it ideal for a variety of industrial and commercial applications that require high-temperature heating. Its advanced technology ensures reliable and efficient performance, meeting the demanding hot water needs of businesses and industries.

• Smart phone APP control: The C1 H series heat pump features WiFi connectivity, enabling it to connect to your home router. This allows for remote control via a smartphone app, providing convenient and easy management of the heat pump from anywhere.

• IOT platform: The C1H series heat pumps are equipped with an IoT control platform, allowing for remote monitoring and control via a computer. This platform provides real-time data on system performance, energy usage, and allows users to adjust settings remotely, improving convenience, efficiency, and system management. Additionally, it supports predictive maintenance alerts, ensuring timely service and optimal operation.
• The IoT platform offers the following features:
  Unlimited addition of sub-users with the ability to assign multiple roles and permissions.
  Remote data configuration and viewing (including historical data).
  Distributors can independently update company information and logo display.
  Access to current and historical fault information.
  Automatic notifications: the system sends SMS and email alerts to the designated maintenance personnel's phone and email when a fault occurs.
  Support for remote software updates (OTA).
  4G Communication: We can pre-install the SIM card in the module at our factory, and it will support coverage across Europe. Alternatively, you can also use your own SIM card.

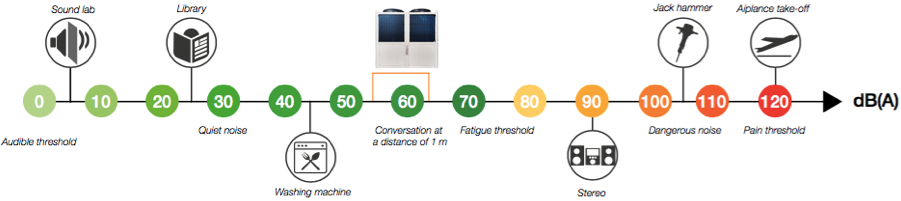

• Quiet: The C1H series heat pumps are designed for low noise operation, utilizing advanced soundproofing materials and optimized vibration reduction technology. This ensures quiet performance, making them ideal for both residential and commercial environments.

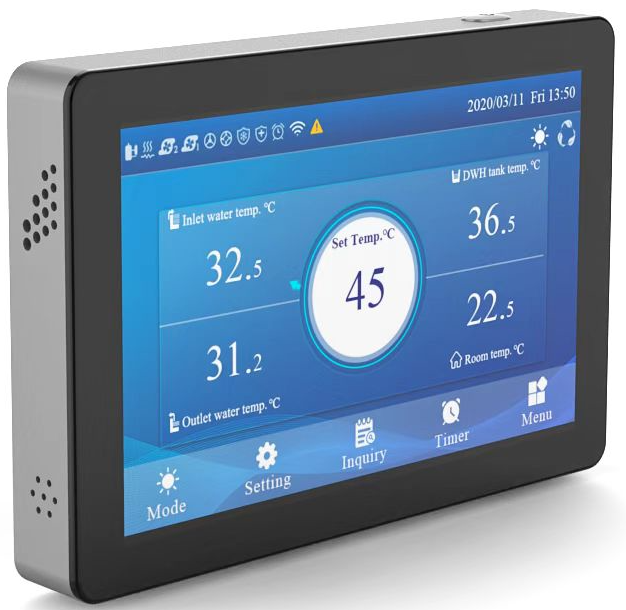

• User friendly: The C1 Pro series heat pump features a 5-inch touchscreen control panel, offering convenient and user-friendly operation.

Line-Up

90℃ High- Water Temperature Heat Pump - C1H (R134A+R32) Images
