Commercial Air to Water Heat Pump-C1 (R134A)

Product Categories
FOSHAN JUYANG NEW ENERGY CO LTD
Contact Now

Commercial Air to Water Heat Pump-C1 (R134A)

Brand Name : Deakonet

Model Number : 25/36/46/52/73/84/96/140/160/180kW Models

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : ,L/C,T/T

Supply Ability : 5,000 units/Year

Delivery Time : 20-25 Working Days

Packaging Details : Plywood box

COP : 3.9

Compressor : Copeland Scroll Compressor

Refrigerant : R134A

Condenser : Coaxial Tube Heat Exchanger

Fan Motor : AC

Control : WIFI +APP +4.3/5 Inch Touch Screen Panel

Function : Hot Water+Room Heating/Cooling

Contact Now

Multiple Applications

  • The C1 series heat pumps are ideal for underfloor heating, radiators, and hot water applications.Commercial Air to Water Heat Pump-C1 (R134A)

-Heating: Air source heat pumps extract heat from the outside air and use it for indoor heating. They are suitable for various heating methods, including underfloor heating, radiators, and fan coil units.


-Cooling: In the summer, air source heat pumps can operate in reverse to transfer heat from indoors to the outside, functioning as an air conditioner to provide a cool and comfortable indoor environment.


-Hot Water Supply: Air source heat pumps can heat water for domestic use, such as bathing, laundry, and kitchen needs.


Advantages of the C1 Series

  • Flexible Installation: Capable of switching between heating and cooling modes, the system can provide hot water, space heating (radiators or underfloor), and cooling (via fan coils).

Commercial Air to Water Heat Pump-C1 (R134A)

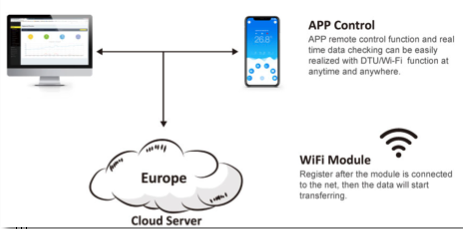

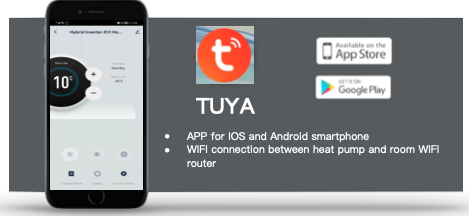

  • Smart phone APP control: The C1 series heat pump features WiFi connectivity, enabling it to connect to your home router. This allows for remote control via a smartphone app, providing convenient and easy management of the heat pump from anywhere.

Commercial Air to Water Heat Pump-C1 (R134A)

  • IOT platform: The C1 series heat pumps are equipped with an IoT control platform, allowing for remote monitoring and control via a computer. This platform provides real-time data on system performance, energy usage, and allows users to adjust settings remotely, improving convenience, efficiency, and system management. Additionally, it supports predictive maintenance alerts, ensuring timely service and optimal operation.

Commercial Air to Water Heat Pump-C1 (R134A)

  • Quiet: The C1 series heat pumps are designed for low noise operation, utilizing advanced soundproofing materials and optimized vibration reduction technology. This ensures quiet performance, making them ideal for both residential and commercial environments.

Commercial Air to Water Heat Pump-C1 (R134A)

  • User friendly: The C1 series heat pump features a 4.3-inch touchscreen control panel, offering convenient and user-friendly operation. Commercial Air to Water Heat Pump-C1 (R134A)


Line-Up

Model

KLR

425

KLR

850

KLR

1275

KLR

1535

KLR

1700

KLR

2125

KLR

3180

KLR

3400

KLR

4250

KLR

5100

Performance at 7℃ ambient, water in/outlet 30/35℃

Heating capacity KW

25

36

46

52

73

84

96

140

160

180

Input power KW

6.6

9.5

12.1

13.8

19.4

22.2

25.3

37.0

42.2

47.7

COP

3.80

3.78

3.79

3.78

3.77

3.78

3.79

3.78

3.79

3.77

Operating current

A

10.0

14.5

18.4

20.9

29.4

33.8

38.5

56.3

64.1

72.5

Maximum outlet water temperature

℃

75

Applicable ambient temperature

℃

-5~43

Compressor

Type

Scroll

Fan motor

Type

AC

Condenser

Type

High efficiency tank heat exchanger

Circulating pump (Optional)

Water flow (m3/h)

4

9.5

10

12

18

18

18

25

32

35

Pump head (m)

10

20

25

25

30

30

30

20

20

30

Input power (KW)

0.8

1.2

1.5

2

3

3

3

5.5

7.5

9

Water connection size

Inch

1.25

1.5

2

2

2

2

2.5

2.5

2.5

2.5

Refrigerant

Type

R134a

Max exhaust pressure

Mpa

1.6

Dimensions

Length (mm)

780

1400

1500

1500

2000

2000

2000

2450

2450

2450

Width (mm)

780

750

800

800

1100

1100

1100

1300

1300

1300

Height(mm)

1075

1450

1550

1550

2060

2060

2060

2260

2260

2260

Power supply

Phase/V/Hz

3/380/50

Waterproof

Grade

IPX4

Anti electric shock

Grade

I

Operating noise

db(A)

60

60

65

67

70

75

79

75

78

78

Weight of heat pump

Kg

146

295

325

385

720

735

780

1560

1700

1750
